Register SWAP Assets
There are several ways to register SWAP Assets within the Registry Module: - Add Agent Method within the Registry Module - Register Method from the Common Information Model (the method callback is provided within the open62541-server-template) - Json Configuration of the open62541-server-template
For all registering approaches, the Registry Module must be started first:
/*build and start the registry module*/
git clone https://github.com/FraunhoferIOSB/swap-it-registry-module
cd swap-it-registry-module
mkdir build && cd build
cmake ..
make
./swap-it-registry-module
Manual Registration
The repository provides a dummy server that can be deployed to test the manual registration. The server utilizes the open62541-server-template, however, in the first steps, tha manual registration, namely without the json configuration, are illustrated. The dummy server corresponds to the SWAP-IT Demo Scenario Beginner Tutorial so that the construction of the server is not explained here in detail.
The code for the server can be found within tutorials/register/register_manually.c in this repository. The executable can be started with
cd build
./tutorials/register_manually
On the code basis, the SWAP Server is configured based on a JSON:
{
application_name: "warehouse",
resource_ip: "localhost",
port: "4840",
module_type: "WarehouseModuleType",
module_name: "WarehouseModule",
service_name: "GetPartsFromWarehouse"
}
and build with the open62541-server-template:
UA_ByteString conf = UA_String_fromChars("{\n"
" application_name: \"warehouse_dr1\",\n"
" resource_ip: \"localhost\",\n"
" port: \"4840\",\n"
" module_type: \"WarehouseModuleType\",\n"
" module_name: \"WarehouseModule\",\n"
" service_name: \"GetPartsFromWarehouse\",\n"
"}");
/* the structure UA_service_server_interpreter will return the pre-defined information about the server
* from the json configuration*/
UA_service_server_interpreter swap_server;
memset(&swap_server, 0, sizeof(UA_service_server_interpreter));
/* with the function UA_server_swap_it from the open62541 server template,
* it is possible to configure the OPC UA server with a single function call*/
UA_server_swap_it(server, conf, warehousemethodCallback, UA_FALSE, &running, UA_FALSE, &swap_server);
UA_ByteString_clear(&conf);
The server can now be registered within the registry module, either with the Add Agent Method provided by the registry module, or with the register method inside the server. Both can be called with the UA Expert Client.
Registering with the Add Agent Method
First, the server can now be registered from the registry:

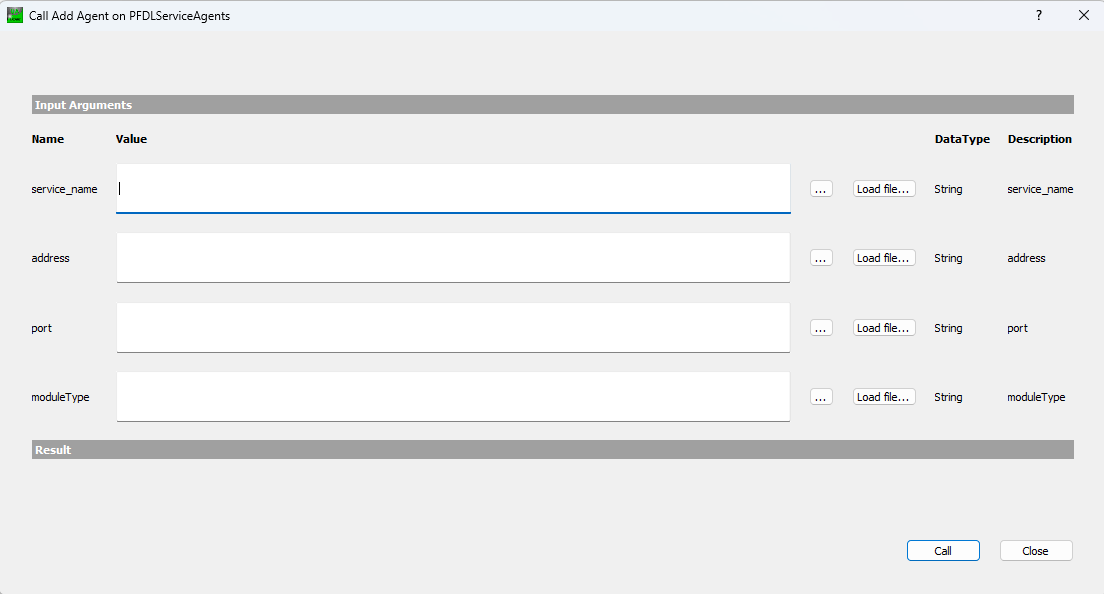

The Method requires four arguments:
service_name: Name of the Service offered from the server
address: the web-address of the server
port: the port of the server
moduleType: the name of the SWAP-Module (see Common Information Model) that is offered by the server

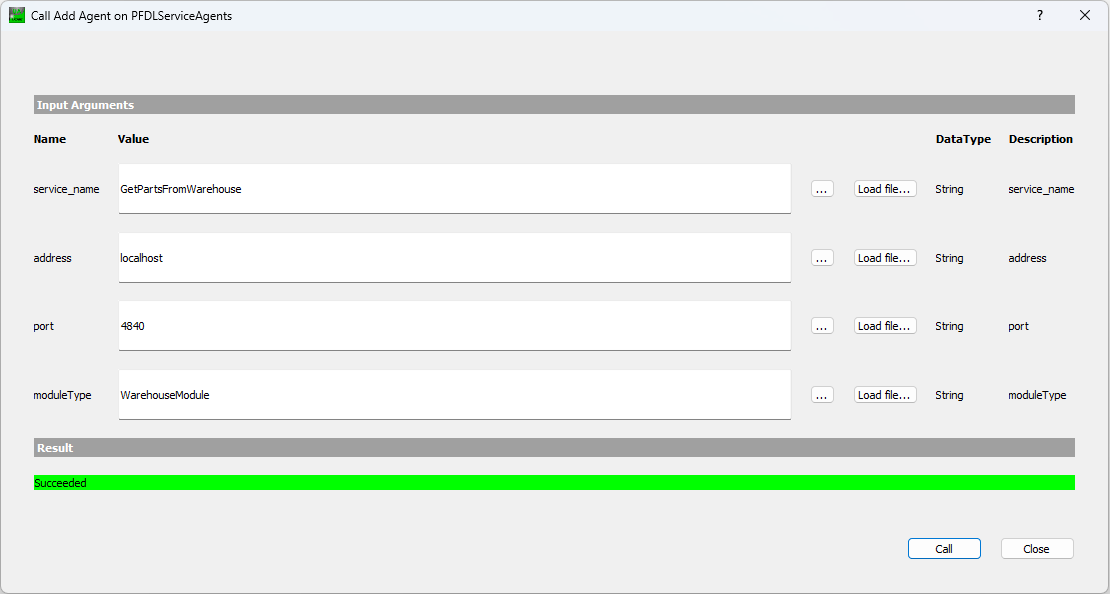

Now, its possible to set the values based on the JSON Config:
service_name: GetPartsFromWarehouse
address: localhost
port: 4840
moduleType: WarehouseModule

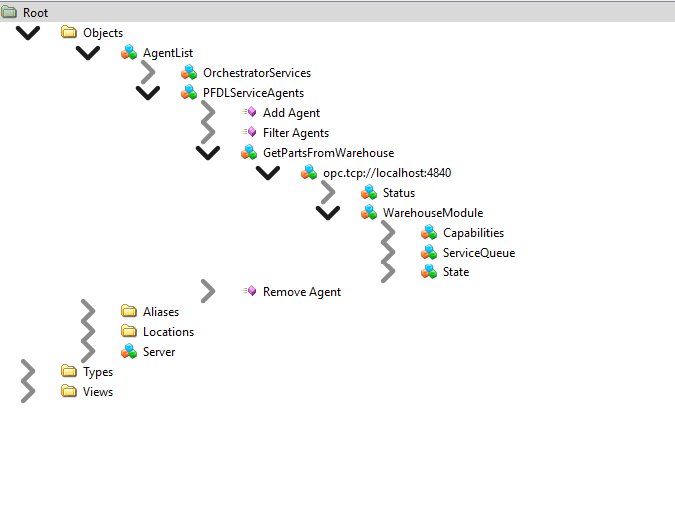

Now we can check the registered server in the registry module. When changing some of the mapped values within the swap server (opc.tcp://localhost:4840), they are now mapped to and synchronized with the registry.
Registering with the register Method
The second manual registering approach arises from the server itself. The open62541-server-template includes the corresponding callback, so that, when utilizing the template to build the server, the method can be called directly. The server to be registers is the same compared to the Add Agent registration, however, the server, as well as the registry module, must be restarted or the server must be unregistered from the registry module, since a single server can only be registered once.
The register method requires different arguments, compared to the add agent method:

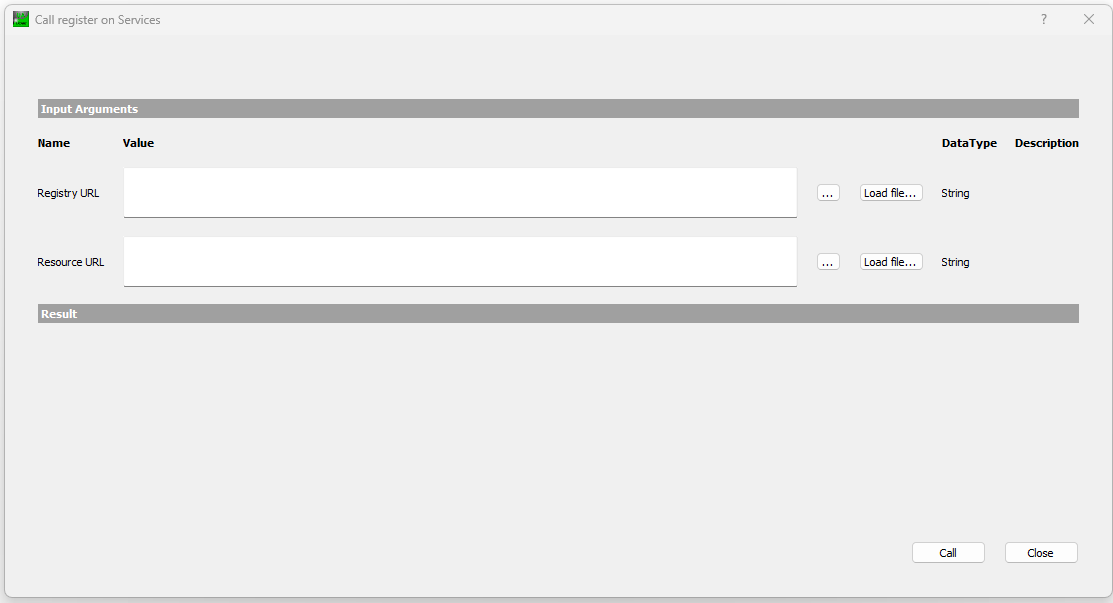

The Method requires two arguments:
Registry URL: URL of the registry module
Resource URL: URL of the server

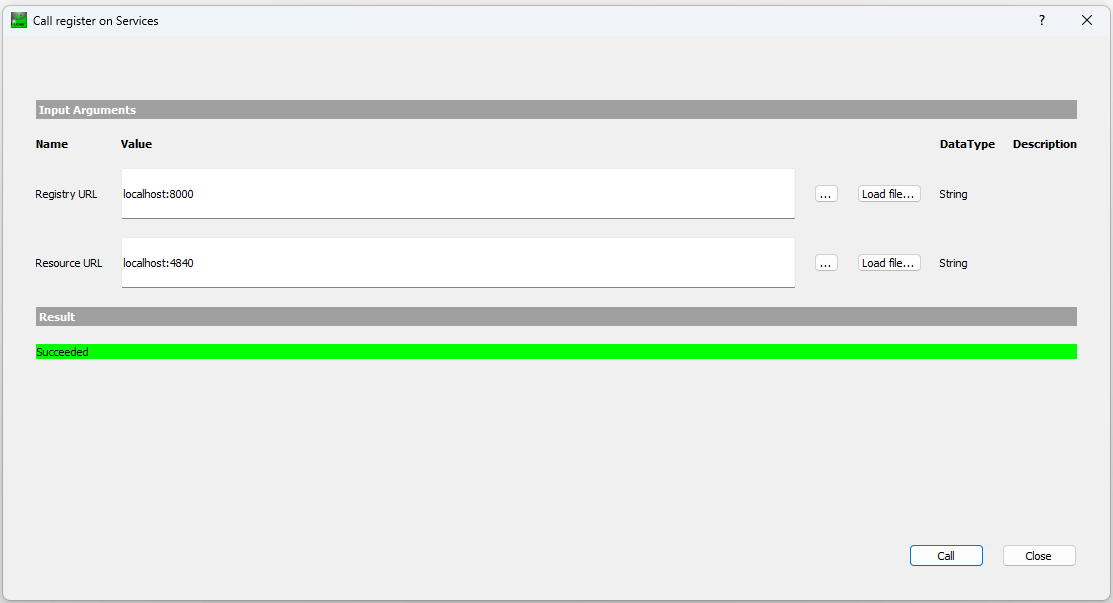

Both arguments can be set with:
Registry URL: localhost:8000
Resource URL: localhost:4840
Now we can check the registered server in the registry module. When changing some of the mapped values within the swap server (opc.tcp://localhost:4840), they are now mapped to and synchronized with the registry.
Registration with the open62541-server-template
For the registration with the open62541-server-template, the JSON config has to be appended with the argument device_registry:”opc.tcp://localhost:8000”
{
application_name: "warehouse",
resource_ip: "localhost",
port: "4840",
module_type: "WarehouseModuleType",
module_name: "WarehouseModule",
service_name: "GetPartsFromWarehouse",
device_registry:"opc.tcp://localhost:8000"
}
Besides, the argument UA_Boolean register_agent_in_registry of the utility function UA_server_swap_it() has to be set to true.
UA_ByteString conf = UA_String_fromChars("{\n"
" application_name: \"warehouse_dr1\",\n"
" resource_ip: \"localhost\",\n"
" port: \"4840\",\n"
" module_type: \"WarehouseModuleType\",\n"
" module_name: \"WarehouseModule\",\n"
" service_name: \"GetPartsFromWarehouse\",\n"
" device_registry:\"opc.tcp://localhost:8000\"\n"
"}");
/* the structure UA_service_server_interpreter will return the pre-defined information about the server
* from the json configuration*/
UA_service_server_interpreter swap_server;
memset(&swap_server, 0, sizeof(UA_service_server_interpreter));
/* with the function UA_server_swap_it from the open62541 server template,
* it is possible to configure the OPC UA server with a single function call*/
UA_server_swap_it(server, conf, warehousemethodCallback, UA_FALSE, &running, UA_TRUE, &swap_server);
UA_ByteString_clear(&conf);
Now, th asset can now be registered by simply staring the executable. However, it must be considered that the registry module must be running to register an agent
cd build
./tutorials/register
